MPAD-800 A1
8” Medical Tablet
Product Feature
- ARM® Cortex® Quad-Core up to 1.8 GHz
- Android 10

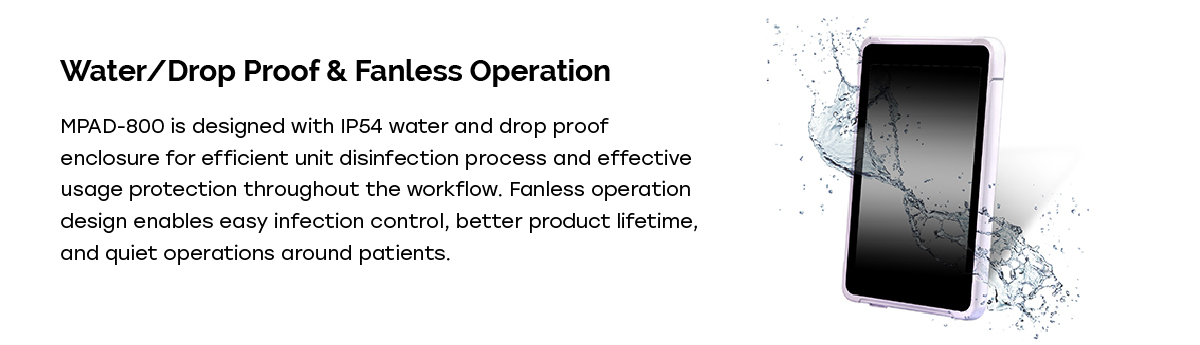

- Water/Drop Proof & Fanless Operation

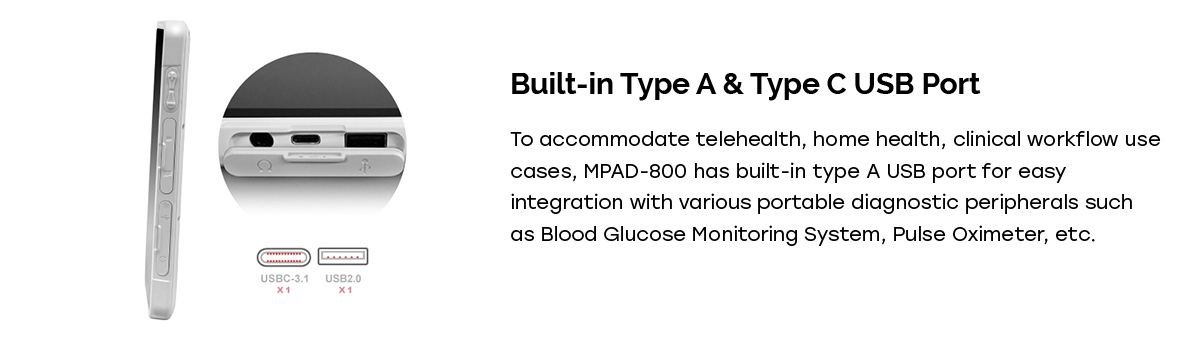

- Build-in Type A USB Port and Type C USB Port

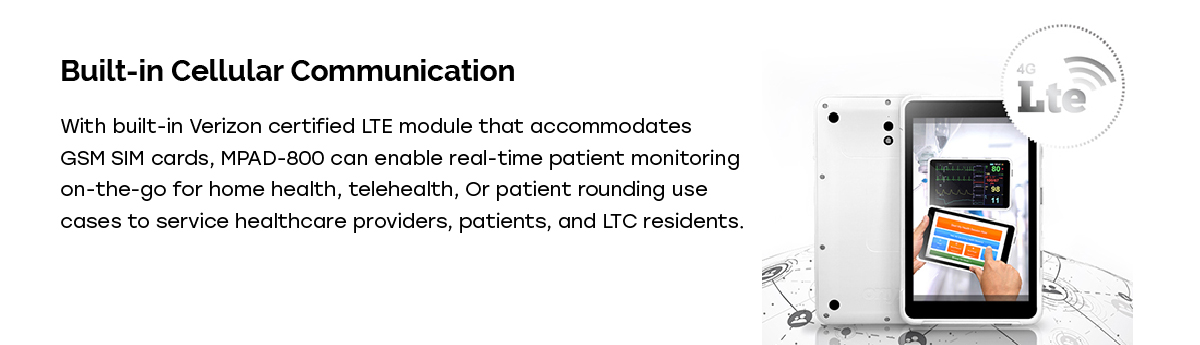

- Built-in Cellular Communication
- Shift Ready Battery Life
- Medical Grade Device Safety
Features
1
6
Specifications
| Main Specifications | ||
| Processor | ARM® Cortex® Quad-Core up to 1.8 GHz | |
| System Memory | 2GB SDRAM | |
| OS Support | Android 10 | |
| LCD Touch Display | 8” (1280 x 800) TFT LCD with 2-point P-cap (Latex Glove Operable) | |
| Communication | WiFi a/b/g/n/ac + Bluetooth 4.0 | |
| I/O Port |
USB Type C x 1 or Micro USB x1 ,USB Type A x 1, Volume Up/Down , 3.5mm Stereo Headphone Jack x1, DC-In Jack x 1 or USB Type C Charging x1 or Pogo pin Charging , Built-In Speaker & Microphone, nanoSIM Card Slot,Micro SD Card Slot |
|
| Storage | 16 GB eMMC Flash | |
| Camera | Front 8MP , Rear 8MP with Flash LED | |
| Sensor |
Built-in Light Sensor, Built-in G-Sensor , Built-in Vibration Motor |
|
| Mechanical and Environmental | ||
| Color | White | |
| Dimension(W x H x D) | 136.6 x 219 x 21 mm | |
| Packing Size | 280 x 250 x 80 mm | |
| Gross Weight | 1.8kg (3.96 lb) | |
| Net Weight | 0.67 Kg (1.48lb) | |
| Operating Temperature | 0°C ~ 40°C | |
| Storage Temperature | -20°C ~ 60°C | |
| Operating Humidity | 10 ~ 75% | |
| Water / Drop Proof | IP54 / 76cm | |
| Certification |
IEC/EN60601-1-2 (v4.0) IEC EN60601-1 (v3.1) UL ES60601-1 (v3.1) cUL : IEC 60601-1(v3.1) FCC : Part 18 TELEC : JAPAN TELEC |
|
| Power Supply | ||
| AC/DC Adapter | AC Power Input: 100 ~ 240V , 50~60Hz,36W , Output:12V , 3A | |
| Battery | Lithium-Polymer High Capacity Battery (8 Hours) | |
