Venus-123
11.6” Intel i7/i5/i3 medical panel PC with Dual Battery
Product Feature

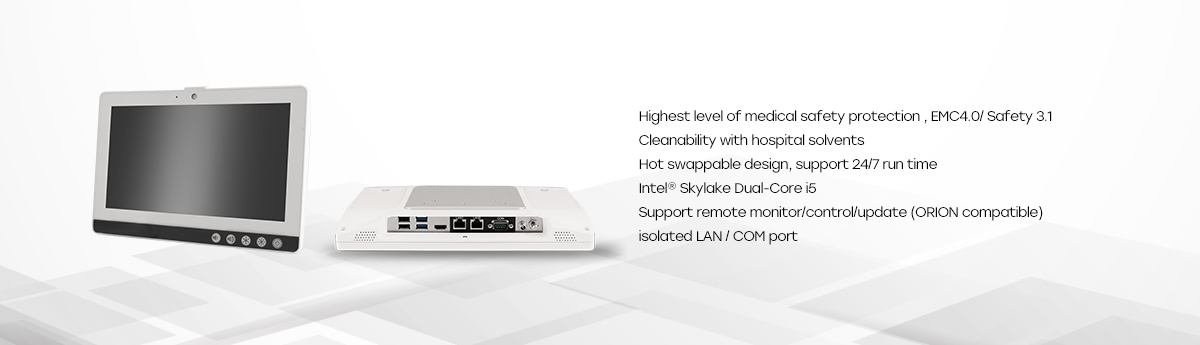

- Medical Panel PC
- Highest level of medical safety protection , EMC4.0/ Safety 3.1
- Cleanability with hospital solvents
- Hot swappable design, support 24/7 run time
- Intel® Skylake Dual-Core i5
- Support remote monitor/control/update (ORION compatible)
- isolated LAN / COM port
Features
1
6
Specifications
| Main Specifications | |
| Processor | Intel® Skylake Dual-Core i5 /Celeron 3955U |
| System Memory | DDR4 up to 16GB |
| OS Support |
Microsoft® Windows 7 Microsoft® Windows 8.1 Microsoft® Windows 10 Ubuntu 18.04 LTS IGEL (thin client solution) |
| Graphics | Intel® HD Graphics 520 |
| Storage | M.2 SSD up to 512GB (optional) |
| Wireless Communication | 802.11 ac/a/b/g/n + BT 4.0 (optional) |
| Touch | Project Capacitive Touch / Resistive Touch |
| Speaker | 2W x2 |
| Security | TPM 2.0 |
| Display | |
| Display Size | 11.6” |
| Max. Resolution | 1366 x 768 |
| Luminance(cd/m2)(TYP) | 250nits |
| Max. Colors | 262K |
| Contrast Ratio | 500:1 |
| I/O | |
| USB | USB 3.0 x2, USB 2.0 x2 |
| Video Out | HDMI out x1 |
| COM | COM port x1 |
| Ethernet | Gigabit LAN x 2 |
| DC-in | 12V DC-in x1 |
| Mechanical and Environmental | |
| VESA | 75/100 mm VESA mount |
| Operating Temperature | 0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Storage Humidity | 10%~95%@40°C, non-condensing |
| Degree of Protection | Front Panel: IP65 ; Rear: IPX1 |
| Dimension | 300(L) x 43(W) x 205(H) mm |
| Net Weight | 1.9kg |
| Gross Weight | 2.6 Kg |
|
Package Dimension (W x D x H) |
420(L) x 185(W) x 345(H) mm |
| Certifications |
CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2) TELEC :JAPAN TELEC |
