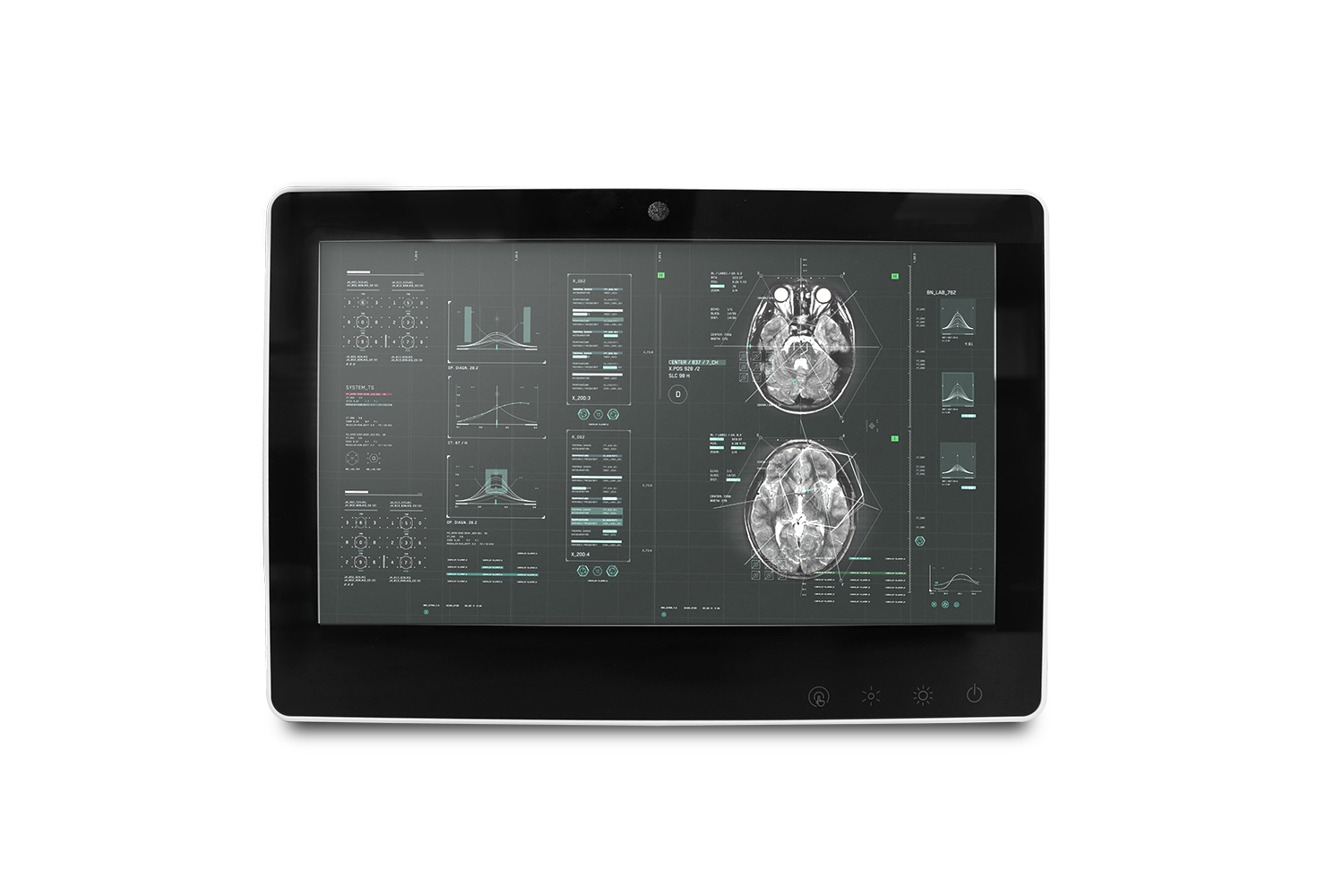

SMA-1233
11.6” Fanless Slim Medical All in One PC
Product Feature
- Slim Medical Panel PC
- Intel® Celeron N6210 / Atom x6211E Dual Core Processor
- 11.6” 250-nit WXGA /300-nit FHD LCD
- Supports DDR4 SODIMM up to 16GB (optional In-Band ECC support)
- Capacitive Multi-Touch Screen
- Proprietary PCI Express[x1] Interface
- Easy Cleaning Flat Screen
- 4 Programmable Smart Function Keys
- High Speed USB 3.1 Port
- 2.0M Pixels Camera with Mic (optional)
- HDMI 2.0b Port for 2nd Display
- RFID Reader (optional)
- +12V DC input / Power over Ethernet(optional)
Features
Specifications
| Main Specifications | |
| Processor |
Intel® Celeron N6210 2.6GHz / Atom x6211E 3.0GHz Dual Core Processor |
| System Memory |
Supports DDR4 3200 SODIMM up to 16GB ( In-Band ECC with Atom x6211E) |
| Expansion Interface | M.2 2230(E-key) x 1, Proprietary PCIe[x1] x 1 |
| Storage Disk Drive | M.2 2242 SATA SSD x1 |
| Security | RFID Reader (optional) |
|
Wireless ommunication |
802.11 a/b/g/n/ac/ax (optional) WiFi 6E + Bluetooth 5.3 (optional) |
| Speaker | 2W x 2 |
| Function Key | LCD Brightness Up/Down, Touch Screen On/Off |
| Power Requirement | DC 12V / Power over Ethernet(optional) |
| OS Support | Windows 10, Windows 11 , Linux |
| Display | |
| Size / Type | 11.6" LCD |
| Max. Resolution | 1366 x 768 / 1920 x 1080 |
| Luminance(cd/m2)(TYP) | 250 nits / 300 nits |
| Max. Colors | 16.7 M |
| View Angle | 90(H)/60(V) / 178(H)/178(V) |
| Contrast Ratio | 500:1 / 800:1 |
| Back Light Life Time | > 15,000 hours |
| Touch Screen | Capacitive Multi-Touch |

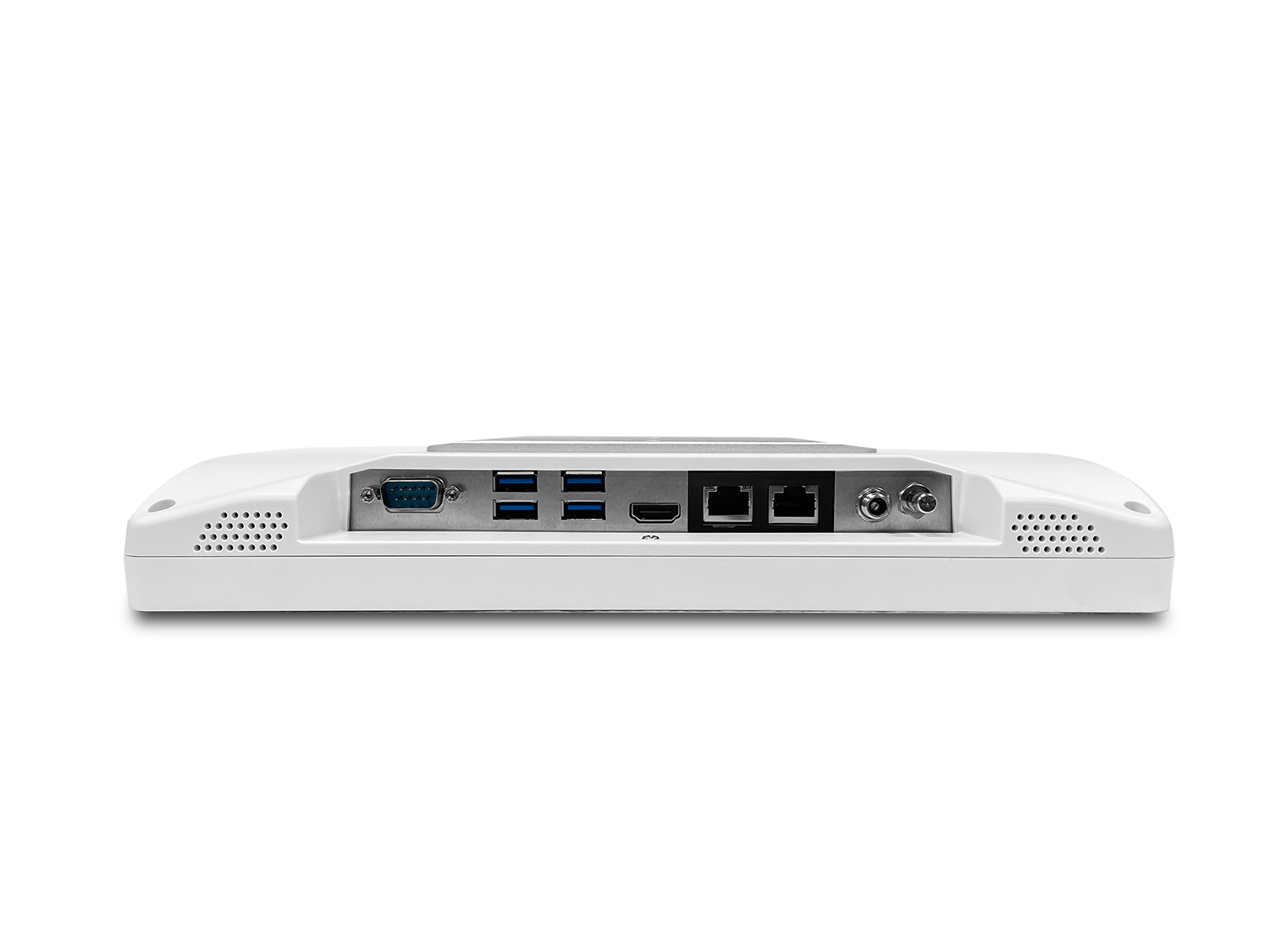

| I/O | |
| USB | USB 3.1 Gen 1 x4 |
| Serial Port | RS-232 x 1 |
| Ethernet | Gigabit LAN x2 (isolated x1 + non-isolated x1) |
| Audio | HDMI 2.0b x 1 |
| Mechanical and Environmental | |
| Power Consumption | TBD |
| Operating Temperature | 0°C ~ 40°C(32°F ~ 104°F) |
| Storage Temperature | 20°C ~ 60°C(-4°F ~ 140°F) |

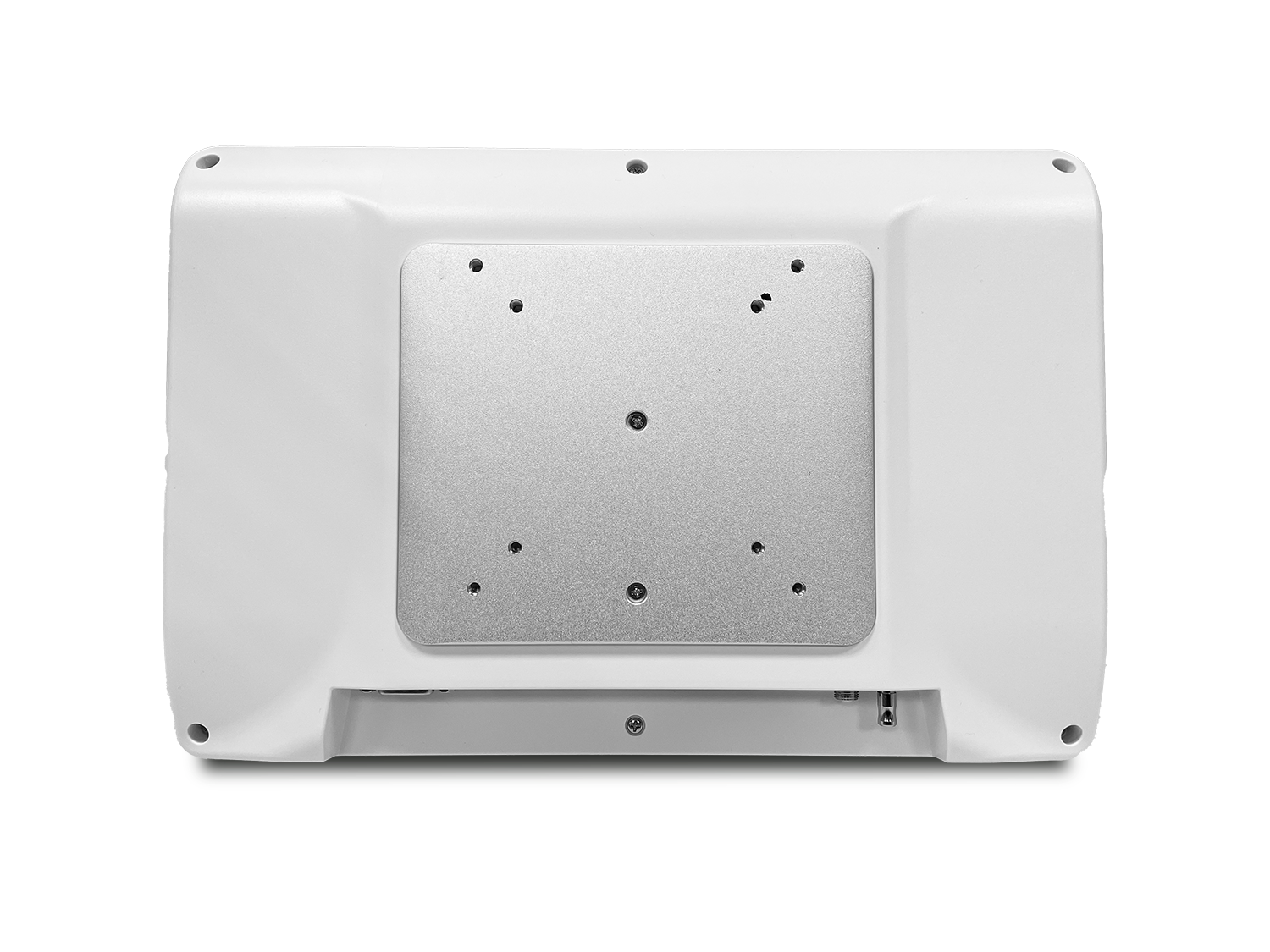

| Mounting | VESA 75/100 mm |
| Degree of protection | IP65 in the front, IPX1 |
| Dimension | 300 x 208 x 39 mm |
| Package Size | 540 x 230 x 370 mm |
| Gross Weight | 4kg (8.82lb) |
| Net Weight | 1.5kg (3.3lb) |
| Certifications |
CE: EN 60601-1-2: 2015 + A1: 2021 (V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 (V3.2) EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 (ITE) IEC 62368-1:2020+A11:2020 (ITE) FCC: Part 15B/ Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021(V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) (V3.2) TELEC :JAPAN TELEC |
