AV over IP Master Controller for Digital OR

Product Feature

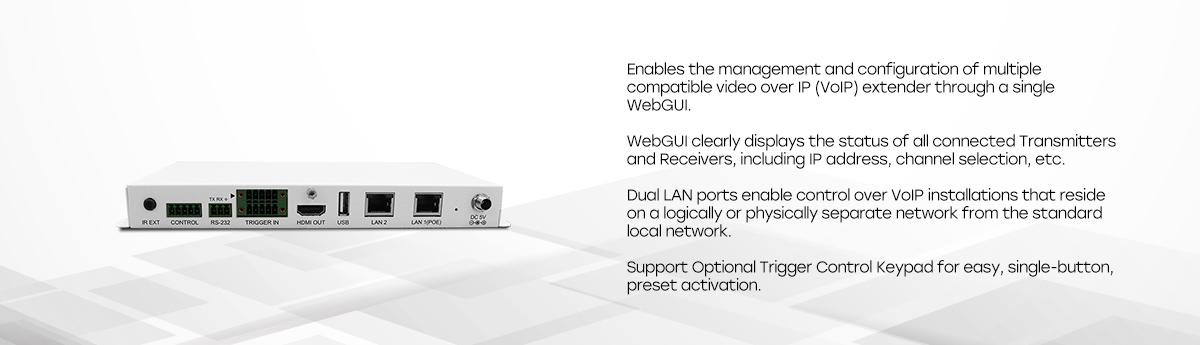

  • Enables the management and configuration of multiple compatible video over IP (VoIP) extender through a single WebGUI.
  • WebGUI clearly displays the status of all connected Transmitters and Receivers, including IP address, channel selection, etc.
  • Dual LAN ports enable control over VoIP installations that reside on a logically or physically separate network from the standard local network.
  • Support Optional Trigger Control Keypad for easy, single-button, preset activation.


1 6


Output Port 1 x HDMI
Control I/O 1 x IR Extender (3.5mm)
1 x RS-232 (3-pin Terminal Block)
8 x Trigger (10-pin Terminal Block)
1 x USB (Type-A)
2 x LAN (RJ-45)
Reserved Port 1 x RS-232 (5-pin Terminal Block)
Maximum Output HDMI
Maximum Output 1920 x 1080p@60
Power Supply 5V/2.6A DC (Locking)
Power Consumption 2.99W
Chassis Material Metal (Steel)
Chassis Color White
Dimensions (W×H×D) 231.5 × 25 ×108 mm (Case Only)
231.5 x 25 x 117 mm (All-Inclusive)
Weight 250g
Packing Size 280 x 180 x 71 mm

CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013/A12:2014 (V3.1)
FCC: Part 18 Class A


Downloadable Contents

Solution Your Best Source for Smart Healthcare Solution

Digital OR
