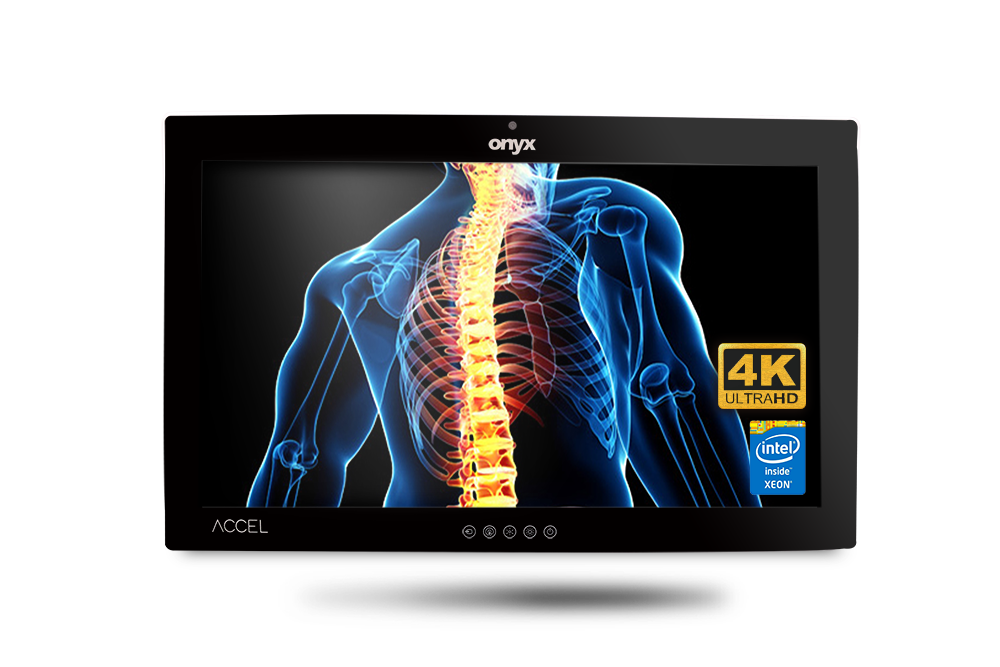

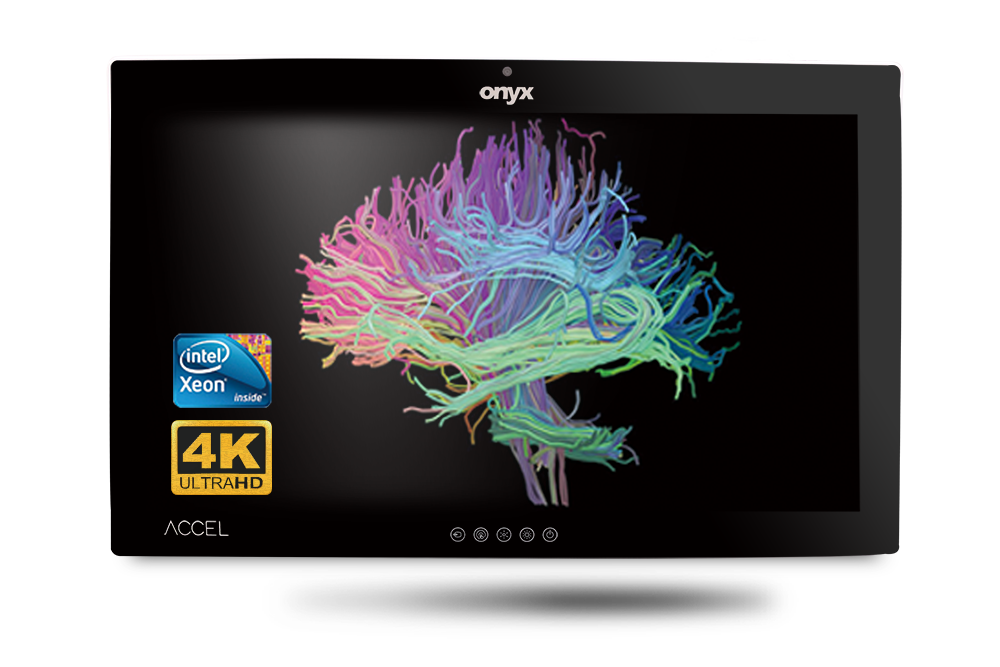

24” FHD 9th Generation Xeon / Core i7 Medial All in One PC for AI Inference

製品機能

Intel® 9th Generation Xeon E-2276ML 2.0GHz Six Core /Core i7-9850HL 1.9GHz Six Core
Supports ECC / Non-ECC DDR4 SODIMM up to 64GB
24” FHD 1920x1080 400-nit High Contrast LCD
Capacitive Multi-Touch Screen
4 Programmable Smart Function Keys with Dual Colors LED Status Indication
LAN/USB(optional)/COM(optional) Medical Isolation
Dual Slots PCI Express[x16] x1 for High End Graphics Card /GPU Accelerator Card up to 250W
PCI Express[x4] x1, PCI Express[x1]x1
Trusted Platform Module 2.0
Remote Management: Intel Active Management Technology
100V to 240V AC Input

機能

1 6

仕様

Main Specifications
Processor	Intel® 9th Generation Xeon E-2276ML 2.0GHz Six Core / Core i7-9850HL 1.9GHz Six Core
Chipset	CM246 (for Xeon) / QM370(for Core i7)
System Memory	ECC (for Xeon) / Non-ECC (for Core i7) DDR4 SODIMM up to 64GB
Expansion	PCI Express[x16] x1, PCI Express[x4] x1, PCI Express[x1] x1
Storage Disk Drive	2.5” SATA Hard Disk Drive/Solid State Disk Drive x2
Security	Trusted Platform Module 2.0
Wireless Communication	802.11ac/a/b/g/n, Bluetooth V4.1/ 5
Speaker	5W x 2
Function Key	Power On/Off, LCD,Brightness Up/Down, Touch Screen On/Off
Power Requirement	100~240V AC
OS Support	Windows® 10, Linux®
Display
Size	24” LCD
Resolution	1920 x 1080
Luminance	400 nits
View Angle	178˚(H)/178˚(V)
Contrast Ratio	1000:1
Back Light Life Time	30,000 Hours
Touch Screen	Capacitive Multi-Touch
I/O
USB	USB 3.0 x 4
Serial Port	Isolated RS-232 x2(optional)
Ethernet	Isolated Gigabit LAN x2
Audio	Mic(optional), Line out(optional)
Video Out	Display Port 1.4 x1
Mechanical and Environmental
Power Consumption	Full loading : 75 Watts
Operating Temperature	0°C ~35°C( 32°F ~95°F)
Storage Temperature	-20°C ~ 60°C(-4°F ~ 140°F)
Mounting	VESA 100mm
Degree of protection	IP65 in the front, IPX1 in the back
Dimension	595 x 387 x 95 mm
Package Size	764 x 240 x 534 mm
Gross Weight	14 kg (30.9 lb)
Net Weight	11 Kg (24.3 lb)
Certifications	CE: EN 60601-1-2: 2015 + A1: 2021 (V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 (V3.2) EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 (ITE), IEC 62368-1:2020+A11:2020 (ITE) FCC: Part 15B/ Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021(V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) (V3.2)
