SMA-1733
17” Fanless Slim Medical All in One PC
Product Feature
- Intel Celeron N6210 / Atom x6211E / Atom x6425E Processor
- 17” 350 nits SXGA LCD
- Supports DDR4 SODIMM up to 32GB (optional In-Band ECC support)
- 5-wire Resistive Touch Screen
- Smart Card Reader(optional) / RFID Reader(optional)
- +12V DC input
Features
Specifications
| Main Specifications | |
| Processor |
Intel® Atom x6425E 3.0GHz Quad Core Processor, Intel® Atom x6211E 3.0GHz Dual Core Processor, Intel® Celeron N6210 2.6GHz Dual Core Processor |
| System Memory |
Supports DDR4 SODIMM up to 32GB (optional In-Band ECC Support ) |
| OS Support | Windows® 10 and 11, Linux (Optional) |
| Expansion Interface | M.2 2230(E-key) x 1, Proprietary PCIe[x1] x1(Optional) |
| Storage Disk Drive | M.2 2242 (B-key) SATA SSD x1 |
| Security | TPM2.0, RFID Reader(optional) |
| Function Key | Speaker Volume Up/Down, LCD Brightness Up/Down |
|
Wireless Communication |
802.11 a/b/g/n/ac/ax + Bluetooth 5.3 (optional) |
| Speaker | Bulid in Speaker (3Wx2) |
| Power Requirement | DC 12V |
| Display | |
| Size | 17" TFT LCD |
| Type | TN |
| Resolution | 1280 x 1024 (XGA) |
| Luminance | 350 nits |
| View Angle | 170˚(H)/160˚(V) |
| Contrast Ratio | 1000:1 |
| Back Light Life Time | > 30,000 hours |
| Touch Screen | 5-wire Resistive |

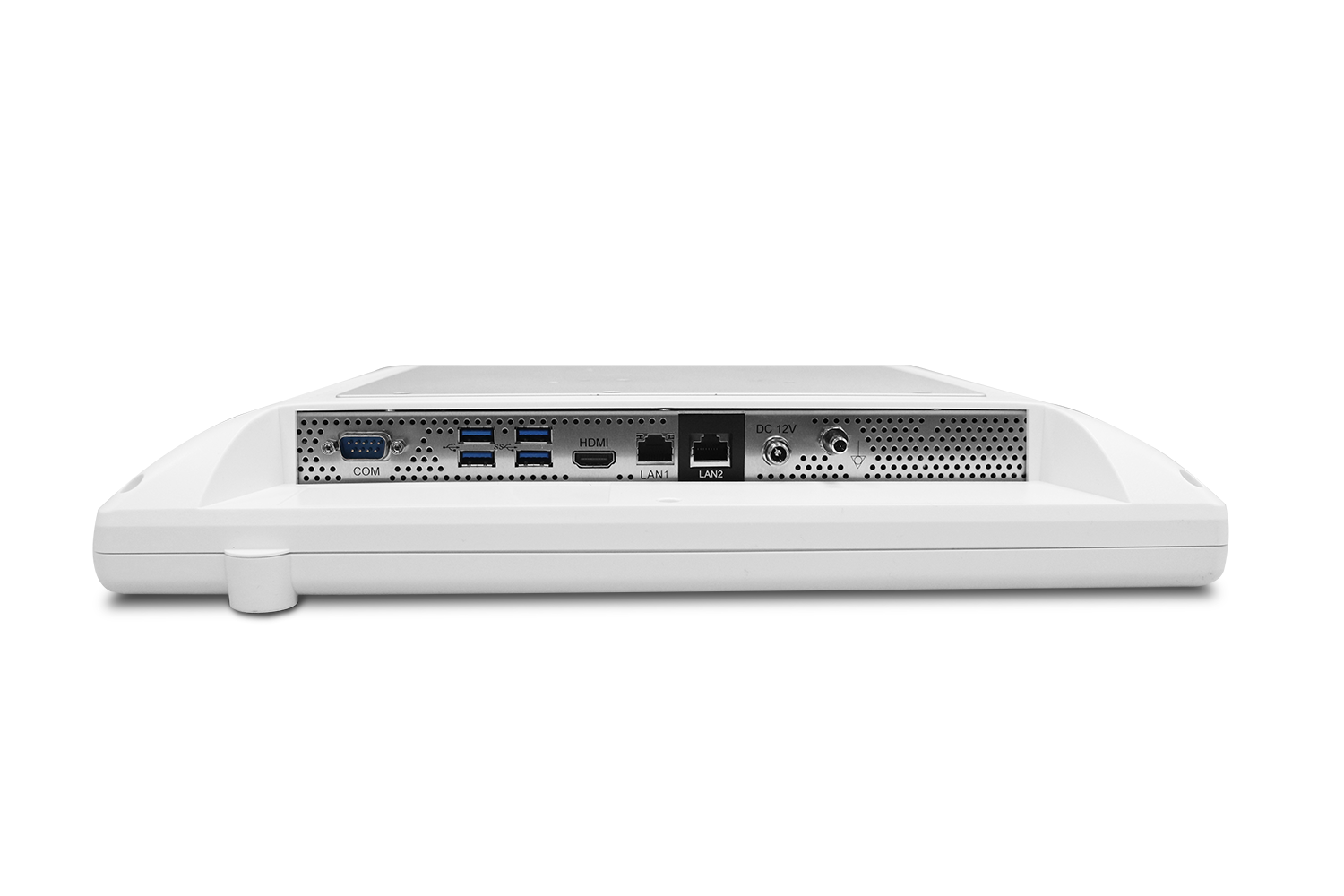

| I/O | |
| USB | USB 3.2 Gen 1x1 x4 |
| Serial Port | RS-232 x 1 |
| Ethernet | Gigabit LAN x2 (isolated x1 + non-isolated x1) |
| Video Out | HDMI 2.0b x 1 |
| Mechanical and Environmental | |
| Power Consumption | Full loading: 57.3Watts |
| Operating Temperature | 0°C ~40°C( 32°F ~104°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Mounting | VESA 75/100 mm |
| Degree of protection | IP65 in the front, IPX1 |
| Dimension | 384 x 338 x 69 mm |
| Package Size | 615x227x628 mm |
| Gross Weight | 9kg (19.84 lb) |
| Net Weight | 5.6kg (12.32lb) |
| Certifications |
CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2) TELEC : JAPAN TELEC |
