SMA-1733
17” Fanless Slim Medical All in One PC
Product Feature
- Slim Medical Panel PC
- Intel Celeron N6210 / Atom x6211E Dual Core Processor
- 17” High Brightness 350 nits SXGA LCD
- Supports DDR4 SODIMM up to 16GB (optional In-Band ECC support)
- 5-wire Resistive Touch Screen
- Trusted Platform Module / Smart Card Reader(optional) /
- RFID Reader(optional)
- 802.11ac Wireless LAN(optional)
- +12V DC input
Features
Specifications
| Main Specifications | |
| Processor |
Intel® Celeron N6210 2.6GHz / Atom x6211E 3.0GHz Dual Core Processor |
| System Memory |
Supports DDR4 3200 SODIMM up to 16GB ( In-Band ECC with Atom x6211E) |
| OS Support | Windows® 7, Windows® 10, Linux® |
| Expansion Interface | M.2 2230(E-key) x 1, Proprietary PCIe[x1] x 1 |
| Storage Disk Drive | M.2 2242 SATA SSD x1 |
| Security |
Trusted Platform Module, Smart Card Reader(optional), RFID Reader(optional) |
| Function Key | Speaker Volume Up/Down, LCD Brightness Up/Down |
|
Wireless Communication |
802.11ac, Bluetooth 5.1(optional) |
| Speaker | 3W x 2 |
| Power Requirement | DC 12V |
| Display | |
| Size | 17" LCD |
| Resolution | 1280 x 1024 |
| Luminance | 350 nits |
| View Angle | 170˚(H)/160˚(V) |
| Contrast Ratio | 1000:1 |
| Back Light Life Time | > 30,000 hours |
| Touch Screen | 5-wire Resistive |

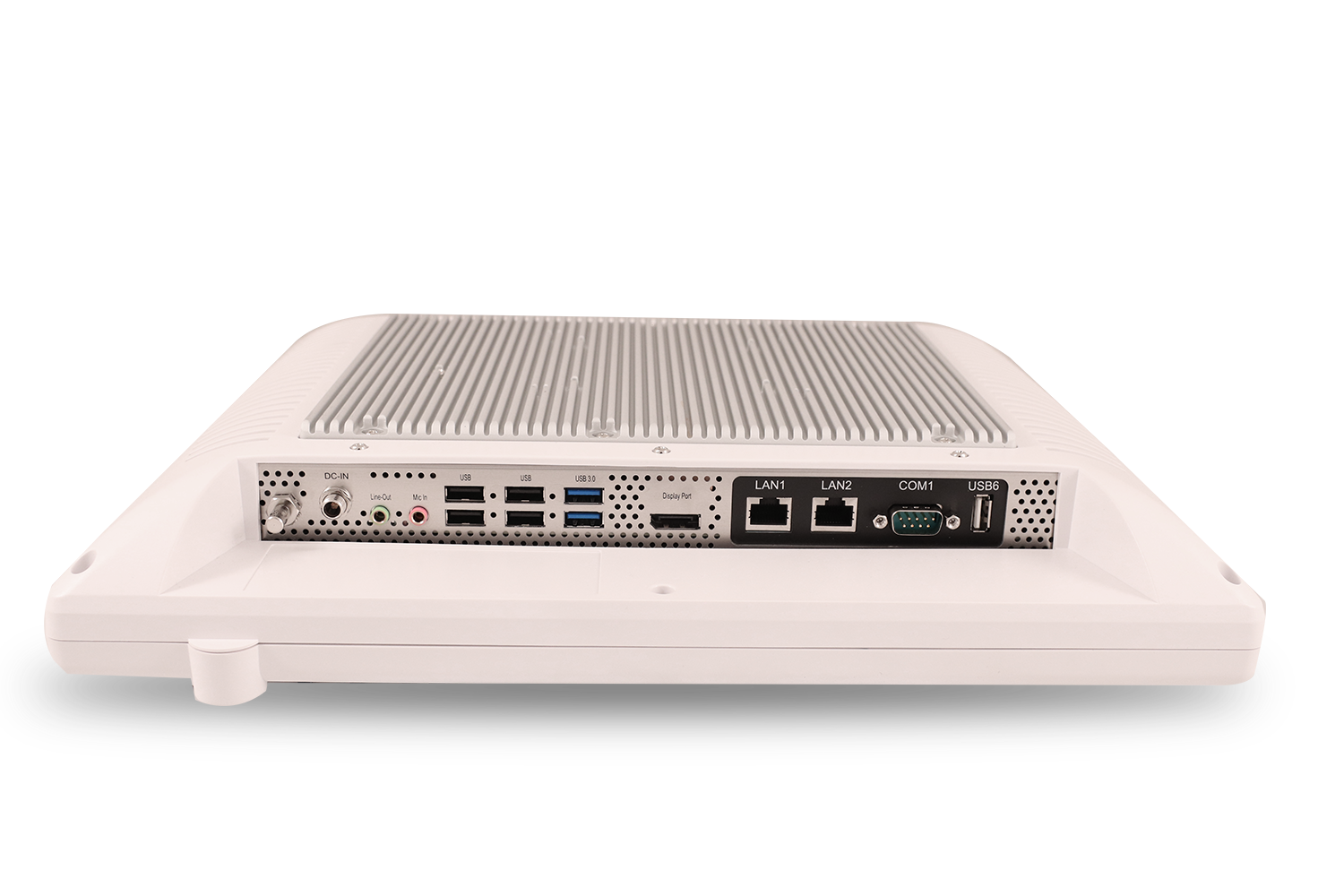

| I/O | |
| USB | USB 3.1 Gen 1 x4 |
| Serial Port | RS-232 x 1 |
| Ethernet | Gigabit LAN x2 (isolated x1 + non-isolated x1) |
| Video Out | HDMI 2.0b x 1 |
| Mechanical and Environmental | |
| Power Consumption | TBD |
| Operating Temperature | 0°C ~40°C( 32°F ~104°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Mounting | VESA 75/100 mm |
| Degree of protection | IP65 in the front, IPX1 |
| Dimension | 384 x 338 x 69 mm |
| Package Size | 630 x 250 x 640 mm |
| Gross Weight | 9kg (19.84 lb) |
| Net Weight | 5.6kg (12.32lb) |
| Certifications |
CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2) TELEC : JAPAN TELEC |
