MEDPC-9210
High Performance Medical Grade PC with Intel ® 13th Generation Core™ iSeries
Product Feature
- Intel® 13th Gen Core i3/i5/i7/i9 Processor
- Support DDR4 DIMM up to 64GB memory
- Support TPM 2.0 for security management
- Support USB 3.2 Gen 2 Type A x 4 and USB 2.0 x2
- Support Digital IO (optional)
- Support External power switch (optional)
Features
Specifications
Main Specifications | |
Processor | Intel® 13th gen Core™ i9/i7/i5/i3 |
System Memory | Supports DDR4 3200 SO-DIMM x 2 up to 64GB |
OS Support | Windows® 11, Linux (optional) |
Storage Disk Drive | 2.5” SATA SSD x 1 |
Storage | M.2 2242 up to 2T |
Security | TPM 2.0 |
Wireless Communication |
WiFi6E+Bluetooth 5.3(optional) |

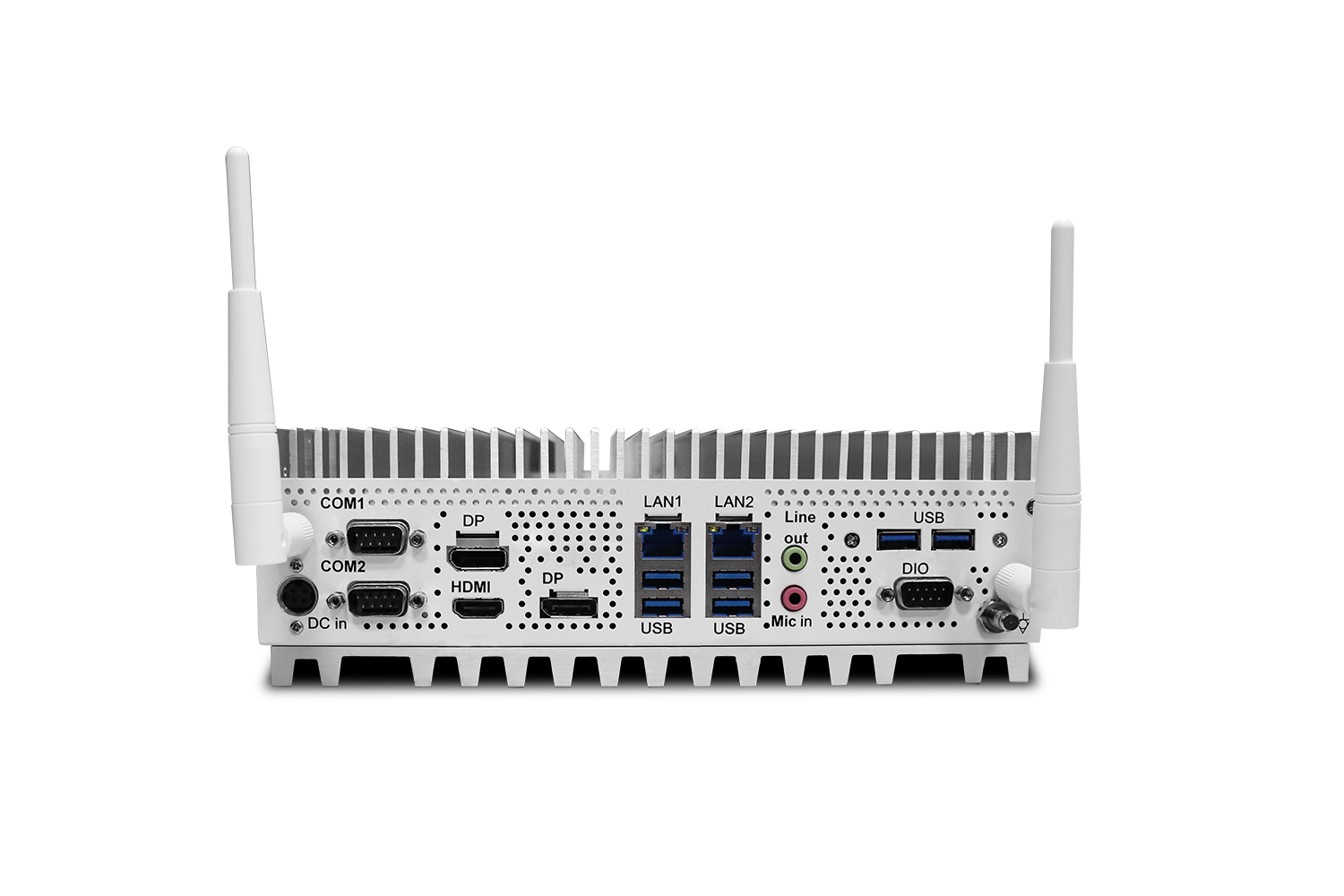

I/O | |
USB | (Rear) USB 3.2 Gen 2 x 4, USB 2.0 x 2 |
(Rear) USB 3.0 x 2 (optional) | |
(front) USB 2.0 x2 (optional) | |
Serial Port | RS-232 x 2 |
Display output | DP 1.4 x 2, HDMI 2.0 x 1 |
Ethernet | Gigabit LAN x 2 |
Video | HDMI2.0b x1 , DP1.4a x2 |
Audio | Mic-in x 1 , Line-out x 1 |
Functional Ports | Grounding Pin x 1 |
Digital IO x1 (optional) | |
External Power Switch (optional) | |
DC-in | 12V DC-in x 1 |
Mechanical and Environmental | |
Operating Temperature | 0°C ~ 35°C(32°F ~ 95°F) |
Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
Dimension | 251 x 88 x 231 (mm) |
Package Size | 365 x 355 x 300 (mm) |
Gross weight | 5.7 kg |
Net Weight | 4.5 kg |
Certifications |
CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2) |
