ACCEL-JS810
NVIDIA Jetson Orin Nano Platform for Medical AI imaging application
製品機能
- NVIDIA Jetson Orin Nano Platform with 8GB LPDDR5 or 4GB LPDDR5
- Powerful AI computing performance with up to 40 TOPS
- Support HDMI 2.0 video output
- Support 360 degree no dead angle cleaning
- Support Full HD SDI and HDMI video input x 1
- Medical certified with CE/FCC/UL
- Support built in speaker x 2
- Fanless Design

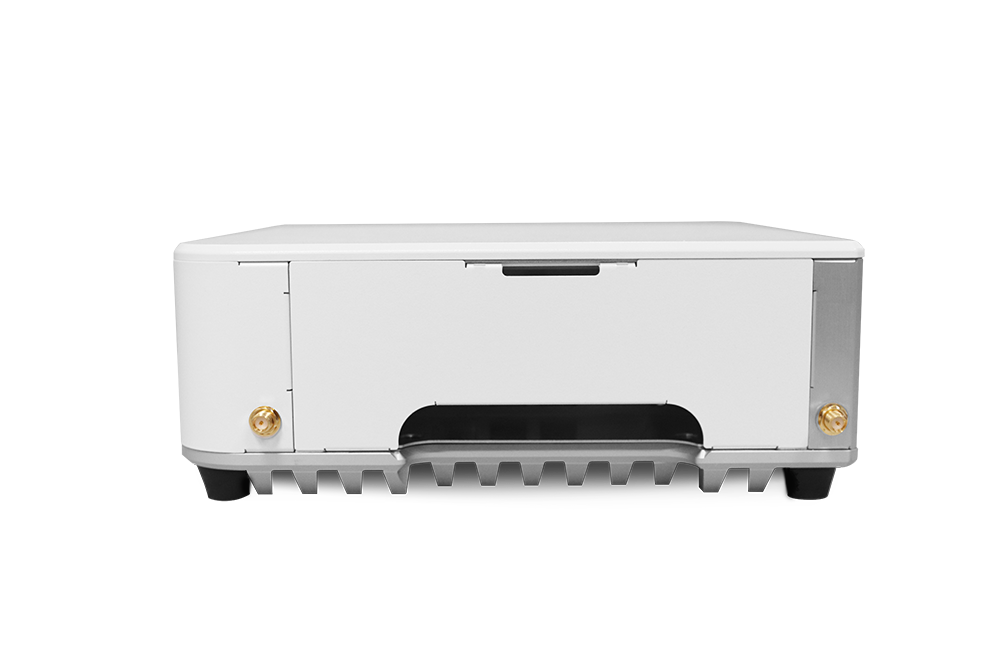

- Support cable cover design for better cable management
- Support IP31 for whole system
機能
仕様
| Main Specifications | ||
| AI Engine | NVIDIA Jetson Orin Nano | |
| CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 (ACCEL-JS810-N1) 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3(ACCEL-JS810-N2) |
|
| System Memory | 8GB 128-bit LPDDR5 68 GB/s or 4GB 64-bit LPDDR5 34 GB/s | |
| Graphics | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
| Storage | NVMe M.2 SSD | |
| OS support | Linux with Jetpack OS | |
| Security | TPM 2.0 | |
| Speaker | 2W x Speaer x 2 | |

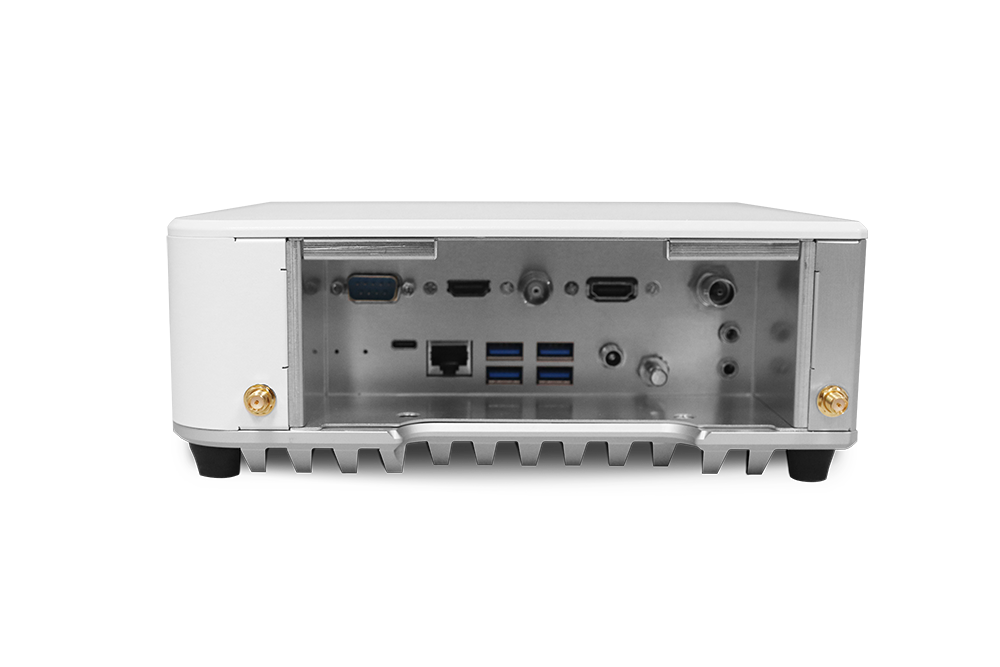

| I/O | ||
| USB |
USB OTG Type C x 1 USB 3.0 Type A x 4 |
|
| Ethernet | Gigabit LAN x 1 | |
| Video Out | HDMI 2.0 x 1 | |
| Video input (Optional) |
3G SDI and HDMI x 1 3G SDI(Max resolution up to 1920×1080p@60fps), HDMI(Max resolution up to 1920×1080p@60fps) |
|
| Audio | Mic-in x 1 , Line out x 1 | |
| Serial Port | RS232 x 1 | |
| Function Port |
Reset Button x 1 ,Recovery Button x 1, Grounding pin x 1 |
|
| DC-in | 12V DC Jack | |

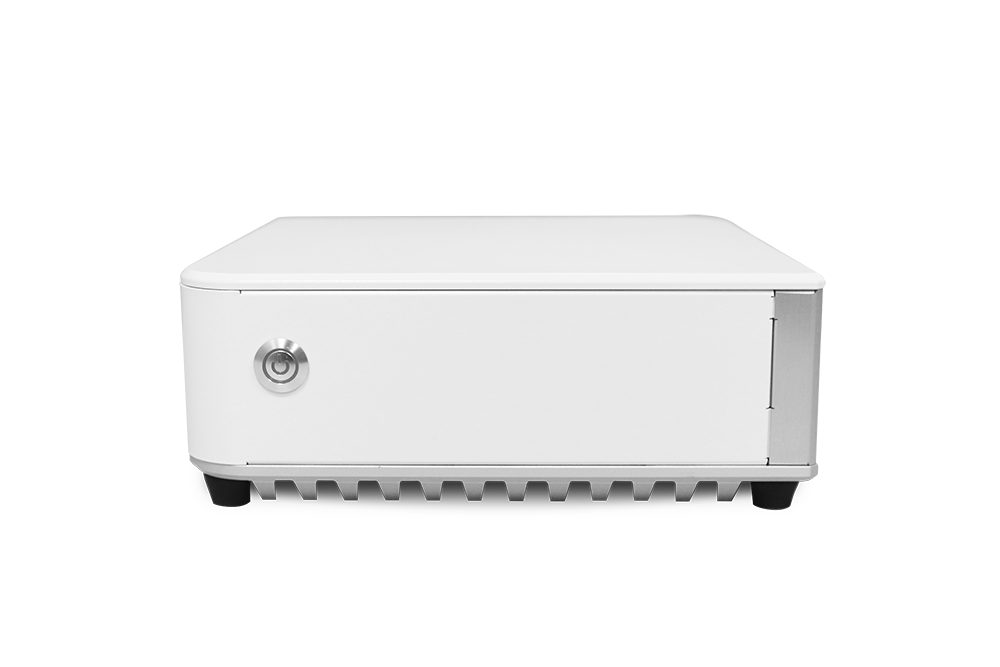

| Front I/O | Power Button with Power LED indicator x 1 | |
| Wireless Communication | 802.11a/b/g/n/ac/ax.w/BT5.2 (Optional) | |
| Environment and Mechanical | ||
| Power | Medical adapter 12V 65W | |
| Operating temperature | 0°C ~ 35°C(32°F ~ 95°F) | |
| Storage temperature | 20°C ~ 60°C(-4°F ~ 140°F) | |
| Dimension | 219mm x 209mm x 83.5mm | |
| Package Size | 360mm x 350mm x 280mm | |
| Gross Weight | 4.33 kg | |
| Net Weight | 2.6 kg | |
| Certifications |
CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1) FCC: Part 18 Class B, Part 15 Class B, UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) |
|
