MATE2-2212

22” Fanless 13th Generation Core i9 Powerful Medical All in One PC

Product Feature

  • Intel® 13th Generation Core™ i9/ i7/ i5 /i3 Processor
  • Supports Dual Channel DDR5 5600/ 4800 SODIMM up to 64GB
  • 22" Full HD Wide Viewing Angle LCD
  • Capacitive Multi-Touch Screen
  • Two Gigabit Ethernet
  • High Speed USB 3.2 Gen2 Ports
  • RS-232 x 2
  • 8MP Camera with Mic (optional)
  • PCI Express [x4] / [x1] x1 (optional)
  • Imprivata RFID Reader (optional)
  • Reading Light
  • imprivata
  • IGEL
  • Fan-less

Features

Specifications

Main Specifications
Processor Intel 13th Generation Core i9-13900TE 24 Cores 5.00GHz
Intel 13th Generation Core i7-13700TE 16 Cores 4.80GHz
Intel 13th Generation Core i5-13500TE 14 Cores 4.50GHz
Intel 13th Generation Core i3-13100TE 4 Cores 4.10GHz
System Memory Supports Dual Channel DDR5 5600/ 4800 SODIMM up to 64GB
Expansion Interface PCI Express[x4]/[x1] x1 (optional)
OS Support Windows® 10, Windows® 11, Linux®
Storage Disk Drive M.2 2280 SATA SSD x 1
2.5" SATA Hard Disk Drive/SSD x 1 (optional)
Security Trusted Platform Module 2.0 ,
Imprivata RFID Reader (optional)
Wireless Communication 802.11 ac/a/b/g/n(optional), 802.11 ax (optional),
Bluetooth 5 (optional)
Speaker 2W x 2
Function Key LCD Brightness Up/Down,
Touch Screen On/Off, Reading Light On/Off
Power Requirement AC 100~240V / DC 12V
Display
Size 22" LCD
Max. Resolution 1920 x 1080
Luminance(cd/m2)(TYP) 250 nits
View Angle 178˚(H)/178˚(V)
Contrast Ratio 1000:1
Back Light Life Time 50,000 Hours
Touch Screen Capacitive Multi-Touch

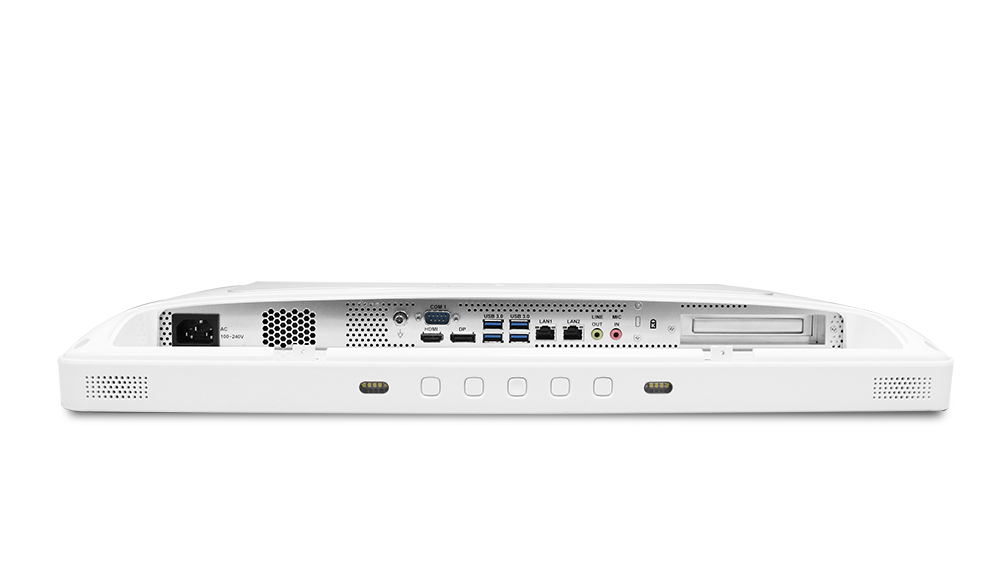

I/O
USB USB 3.2 Gen 2 x 2 ,USB 3.2 Gen1 x2
Serial Port RS-232 x 2 or x1
Ethernet 1.5KV Isolated Gigabit LAN x 2
Video Out HDMI 2.0 x 2
(Supports resolution up to 3840 x 2160)
Audio Mic-in, Line-out
Mechanical and Environmental
Operating Temperature 0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)

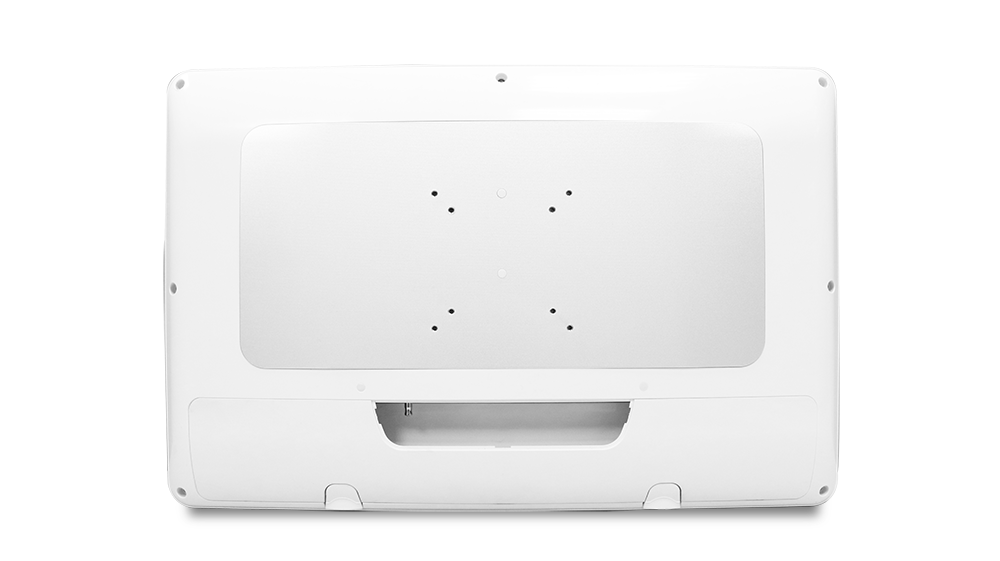

Mounting VESA 75/100 mm
Degree of protection IP65 in the front ; IP54 in the back
Dimension 542 x 355 x 67mm
Package Size 711 x 195 x 503mm
Gross Weight 11 kg (24.25 lb)
Net Weight 7.5 kg(16.5 lb)
Certifications CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1),
EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2)
EN 55032:2015/A1:2020
EN55035:2017/A11:2020( ITE)
IEC62368-1:2020+A11:2020 ( ITE)
FCC : Part 15B/ Part 18
UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2)
cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1:
2005+A1:2012+A2:2020,MOD) ( V3.2)
TELEC:JAPAN TELEC
