AMD Ryzen™ Embedded V1000 Medical Mini-ITX Motherboard

Product Feature

  • AMD Ryzen Embedded V1000 Dual/Quad Core Processor
  • Supports ECC/Non-ECC DDR4 SODIMM up to 32GB
  • High Speed USB 3.1 x3
  • PCI Express[x8] x1, M.2 slot x2, Mini Card x1
  • +12V DC Input
  • Low profile form factor for all-in-one terminal and 1U chassis
  • Medical grade UL/EN-60601 pre-certified with low EMI radiation


1 6


Main Specifications
Processor AMD Ryzen Embedded V1000 Processor
System Memory DDR4 SODIMM x2, Max 32GB
Graphics AMD Vega GPU with up to 11 Compute Units
Ethernet Intel I211AT Gigabit x2
Expansion Interface PCIe[x8] x1, M.2 2230(E-Key) for WiFi x1, M.2 2280(B-Key)
for SSD x1, Half Size Mini Card x1
Power Requirement +12V DC
OS Support Windows 10, Lnux
Board Size 170mm x 170mm
Operating Temperature 0°C ~60°C

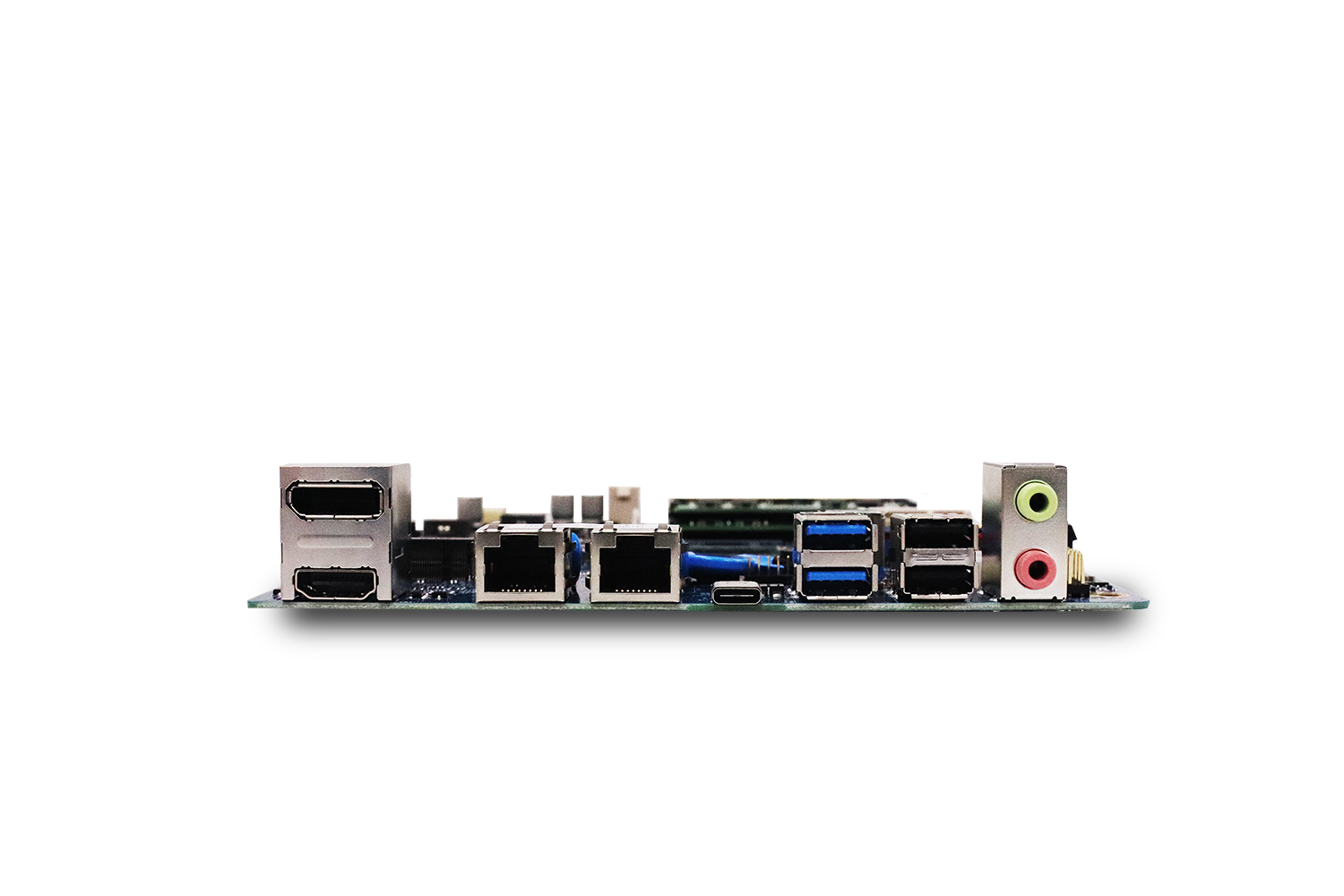

HDMI HDMI 2.0 x1
DisplayPort DisplayPort 1.4 x2
LVDS 18/24-bit Dual Channel LVDS x1
Storage SATA 6Gb/s x1
USB USB 3.1 Type-A x2, USB 3.1 Type-C x1, USB 2.0 x2
Serial Port RS-232 x 2
Ethernet Gigabit LAN x 2
Audio Line out, Mic
Digital I/O (4-in/4-out)
