GENE-5315 Rev. A

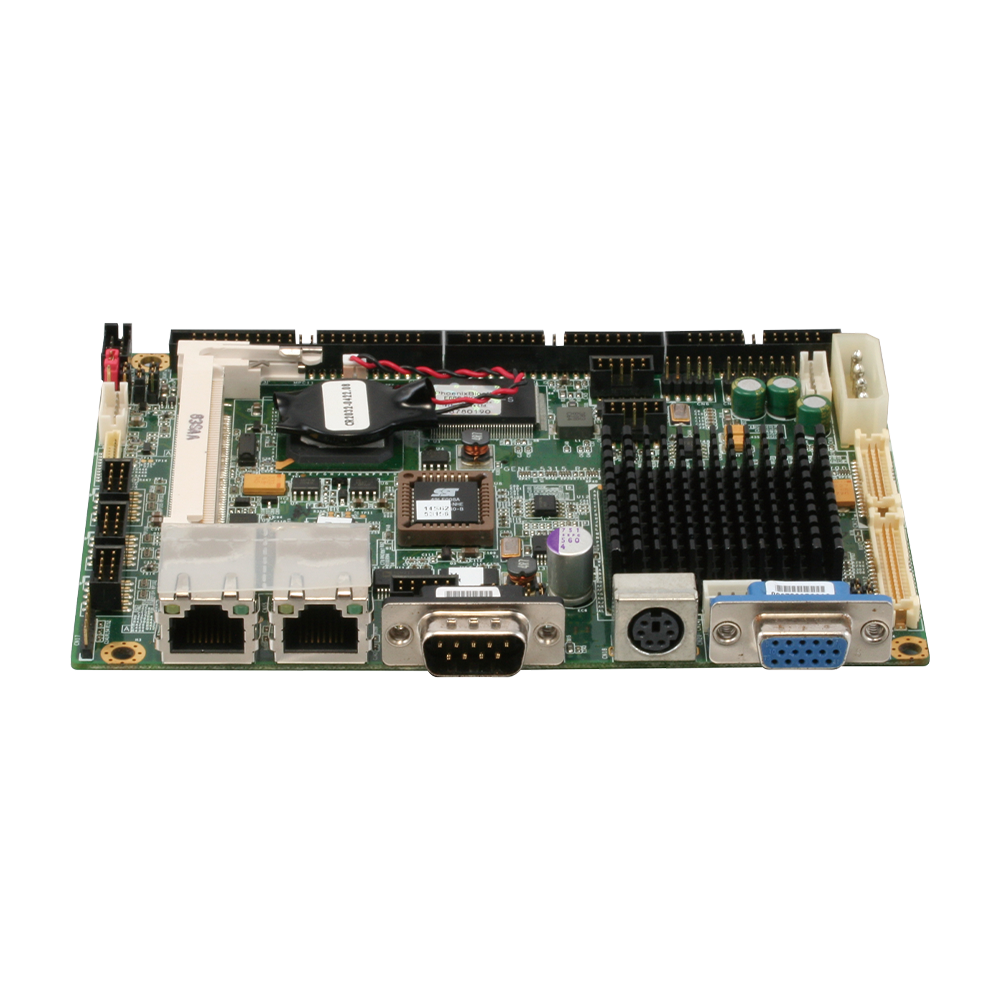

3.5” SubCompact Board with AMD Geode™ LX Series Processor

Product Feature

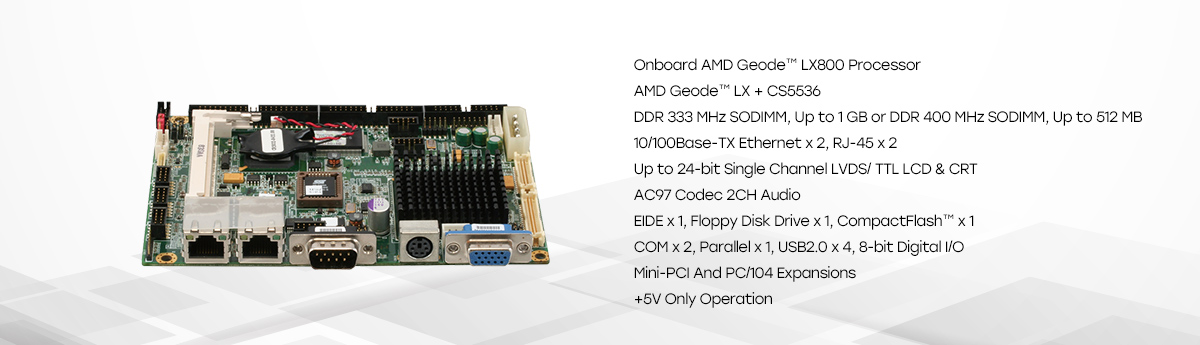

  • Onboard AMD Geode™ LX800 Processor
  • AMD Geode™ LX + CS5536
  • DDR 333 MHz SODIMM, Up to 1GB
  • 10/100Base-TX Ethernet x 2, RJ-45 x 2
  • Up to 24-bit Single Channel LVDS/ TTL LCD & CRT
  • AC97 Codec 2CH Audio
  • EIDE x 1, Floppy Disk Drive x 1, CompactFlash™ x 1
  • COM x 2, Parallel x 1, USB2.0 x 4, 8-bit Digital I/O
  • Mini-PCI And PC/104 Expansions
  • +5V Only Operation


1 6


Form Factor 3.5” SubCompact Board
CPU Onboard AMD Geode™ LX 800
CPU Frequency 500 MHz
Chipset AMD Geode™ LX
Memory Type DDR333 SODIMM x 1
Max. Memory Capacity 1 GB
BIOS Award 1 MB
Wake on LAN Yes
Watchdog Timer 255 Levels
Power Requirement +5V
Power Supply Type AT/ATX
Power Consumption
LX 800 500 MHz, DDR400 1 GB,1.17A@+5V
Dimension (L x W) 5.75” x 4” (146 mm x 101.6 mm)
Operating Temperature 32°F ~ 140°F (0°C ~ 60°C), -4°F ~ 158°F (-20°C ~ 70°C) for WiTAS 1
Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Operating Humidity 0% ~ 90% relative humidity, non-condensing
MTBF (Hours 90,000
Certification CE/FCC
VGA/LCD Controller AMD Geode™
Backlight inverter supply Up to 24-bit single channel TTL/LVDS
Ethernet 10/100Base-TX x 2, Realtek RTL 8139DL
Audio High Definition Audio Interface
USB Port USB2.0 x 4
Serial Port RS-232 x 1, RS-232/422/485 x 1
Parallel Port SPP/EPP/ECP x 1
HDD Interface UDMA33 x 1
SSD CompactFlash™
Expansion Slot Mini-PCI, PC/104
DIO 8 Bit
