ACCEL-JS500 / ACCEL-JS500i

NVIDIA Jetson AGX Xavier or AGX Xavier Industrial platform for Medical AI imaging application

Product Feature

● NVIDIA Jetson AGX Xavier or AGX Xavier Industrial Platoform for Medical AI usage.
● Support AGX Xavier Industrial Platform with 10 years Longevity
● 512-core Volta GPU with Tensor Cores
● Support optional 3G or 12G or HDMI 2.0 input for image capture
● Support Dual 4K display output (HDMI and Display port)
● Support internal speaker
● Medical Certification

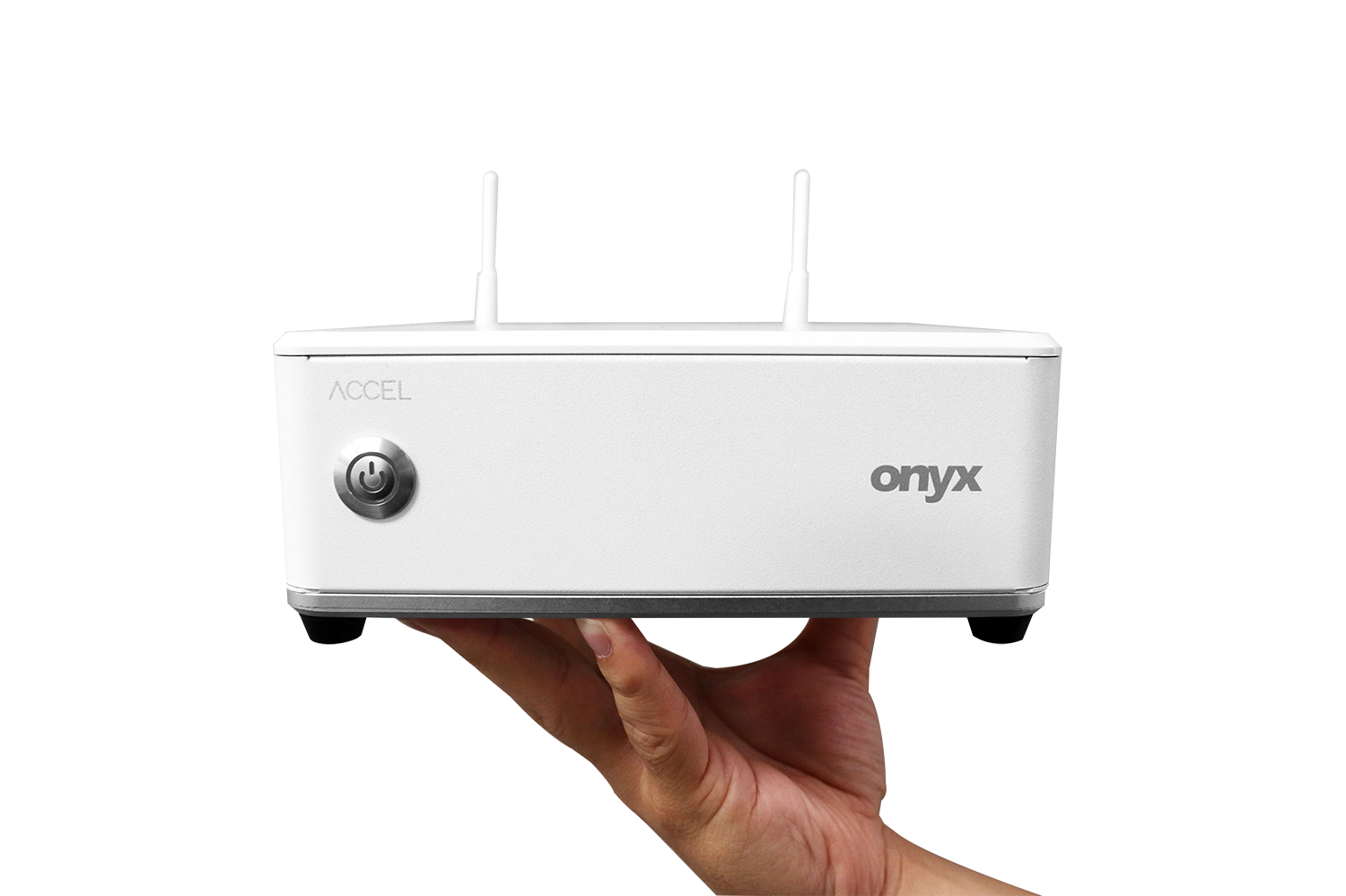

● Palm size dimension with powerful AI computing

Features

1 6

Specifications

Main Specifications
  ACCEL-JS500 ACCEL-JS500i
AI Engine  Nvidia Jetson AGX Xavier NVIDIA Jetson AGX Xaiver Industrial
CPU 8-Core ARM v8.2 64bit CPU, 8MB L2 + 4MB L3
System Memory 32GB 256-bit LPDDR4 w/ECC
Graphics 512 Core Volta GPU with Tensor Cores
Storage 64GB eMMC Onboard
Micro SD card Slot
M.2 M Key 2280
(Only for ACCEL-JS500-N1-A1-0010 and ACCELJS500-
N1-A2-0010)
M.2 M Key 2280
(Only for ACCEL-JS500i-N1-A1-0010 and ACCELJS500i-
N1-A2-0010)
OS support Linux with Jetpack 4.4.1
Security TPM 2.0
Speaker  2W x Speaer x 2(Optional)

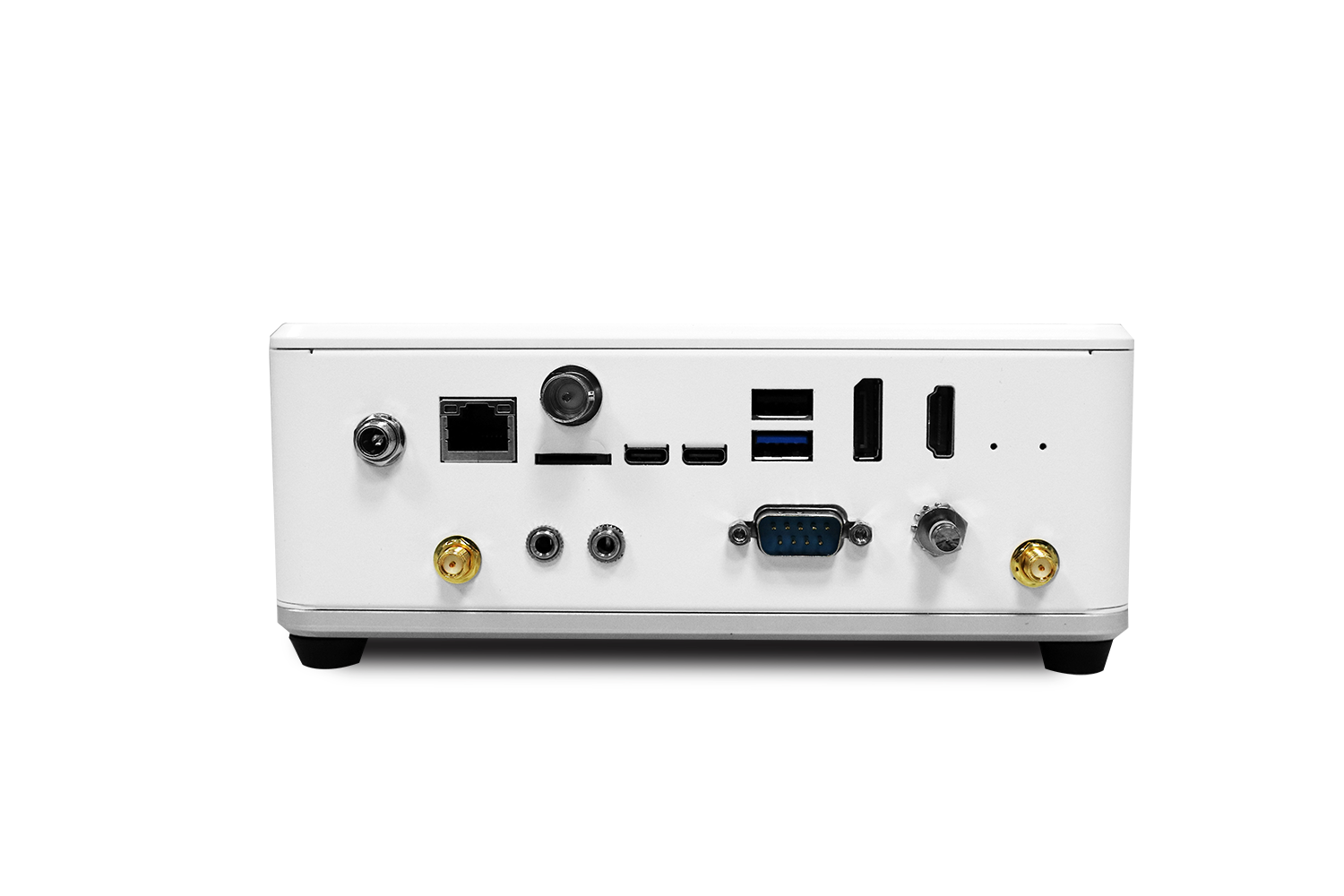

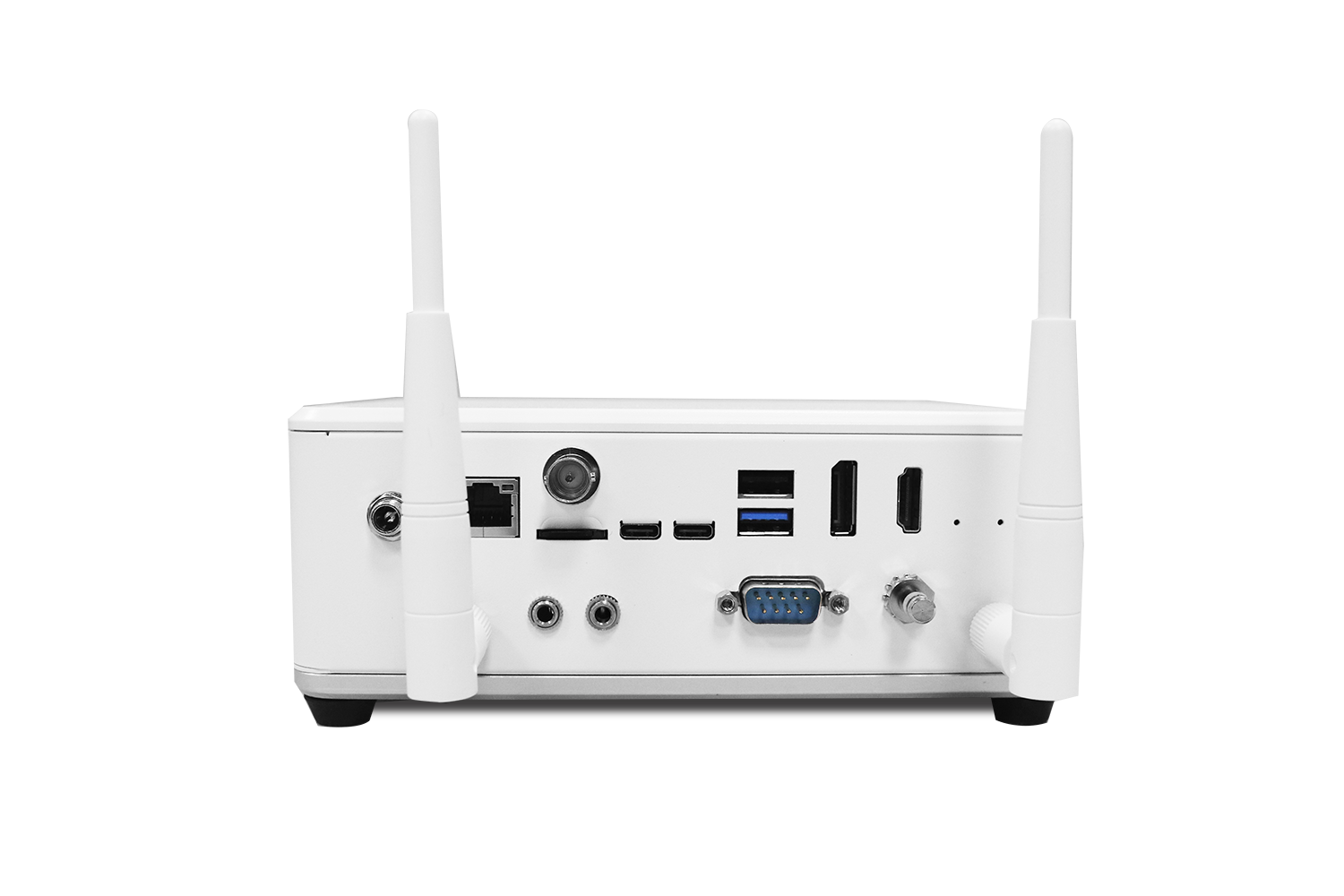

I/O
USB USB Type C x 2 for USB 3.1
USB Type A x 1 for USB 3.0
USB Type A x 1 for USB 2.0
Ethernet Gigabit LAN x 1
Video Out HDMI 2.0 x 1
Display Port 1.4 x 1
Video input (Optional)

3G SDI x 1 or 12G SDI x 1 ,

3G SDI(Max resolution up to 1920×1080p@60fps) ,

12G SDI(Max resolution up to 4096×2160@60fps)

Audio Mic-in x 1 , Line out x 1
COM RS232 x 1
Function Port Reset Button x 1
Recovery Button x 1
DC-in  12V DC Jack
Wireless Communication  802.11a/b/g/n/ac.w/BT5.0 (Optional)
LED Indicator  Power LED x 1
Environment and Mechanical
Power Medical adapter 12V 84W
Operating temperature 0 to 35°C
Storage temperature  -20C to 60°C
Dimension 184(W) x 145(L) x 66(H) mm
Package Size 295(W) x 230(L) x 208(H) mm
Gross Weight 3.1 kg
Net Weight 1.675 kg
Certifications CE: EN 60601-1-2: 2015 + A1: 2021 (V4.1),
EN 60601-1: 2007 + A1:2013 +A2:2021 (V3.2)
EN 55032:2015/A1:2020
EN 55035:2017/A11:2020 (ITE)
IEC 62368-1:2020+A11:2020 (ITE)
FCC: Part 15B/ Part 18
