MEDDP-615
15.6” Slim Medical Display
Product Feature
- 15.6" 1920 x 1080 Resolution Display
- Projected Capacitive Multi-touch
- VGA input and HDMI input
- Stylish and elegant design
Features
1
6
Specifications
| Display | |
| Size | 15.6" |
| Resolution | Full HD 1920 x 1080 |
| Max. Colors | 262K |
| Brightness (Typ.) | 400 nits |
| Viewing Angle (CR=10)(Typ.) | 170° (H)/170° (V) |
| Contrast Ratio (Typ.) | 800:1 |
| Touch Screen | Projective capacitive touch screen |
| Power Requirement | External power adapter, AC IN: 100~240V, DC 12V/3.33A |
| System | |
| OS Support | Windows® 10, Windows® 11 |

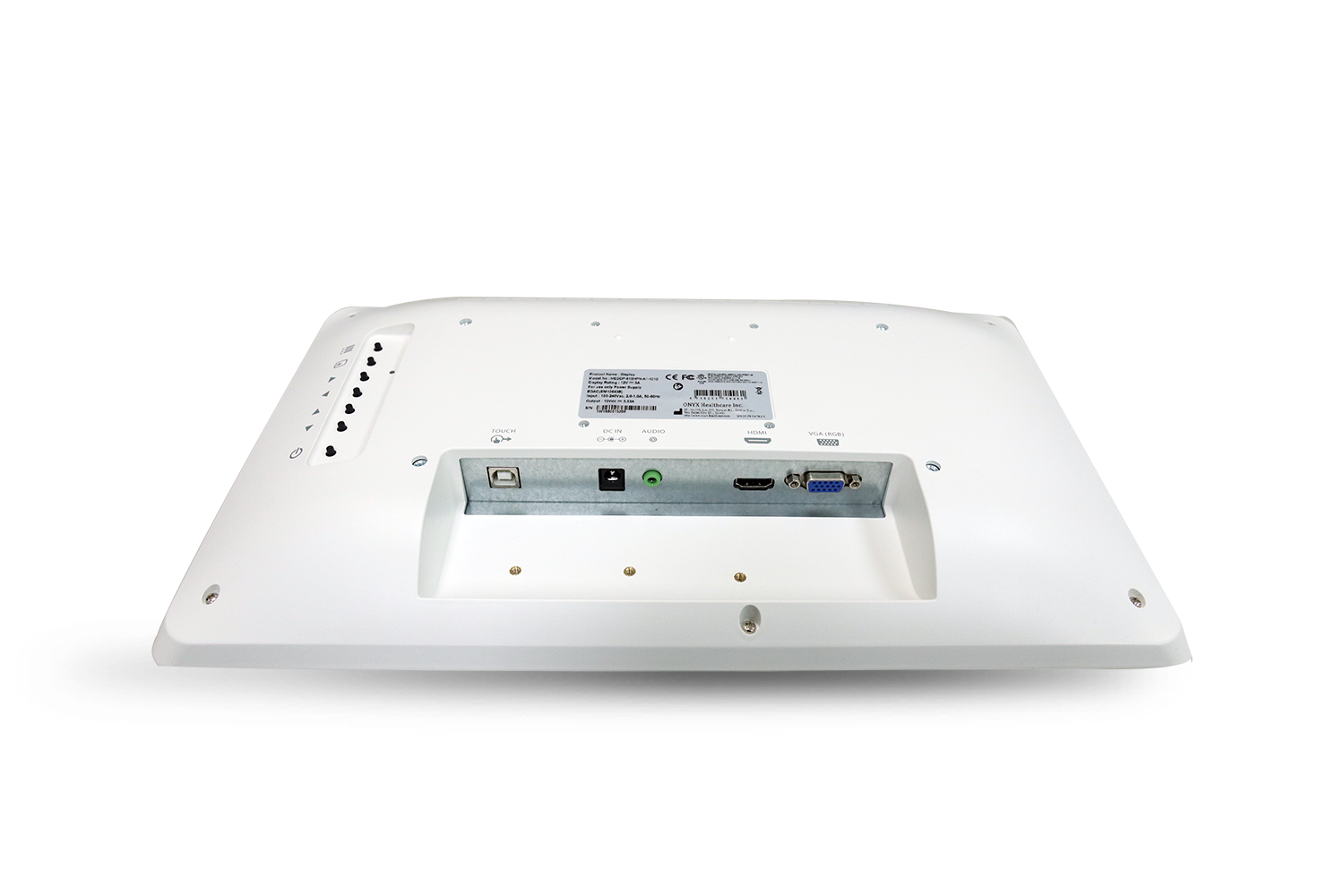

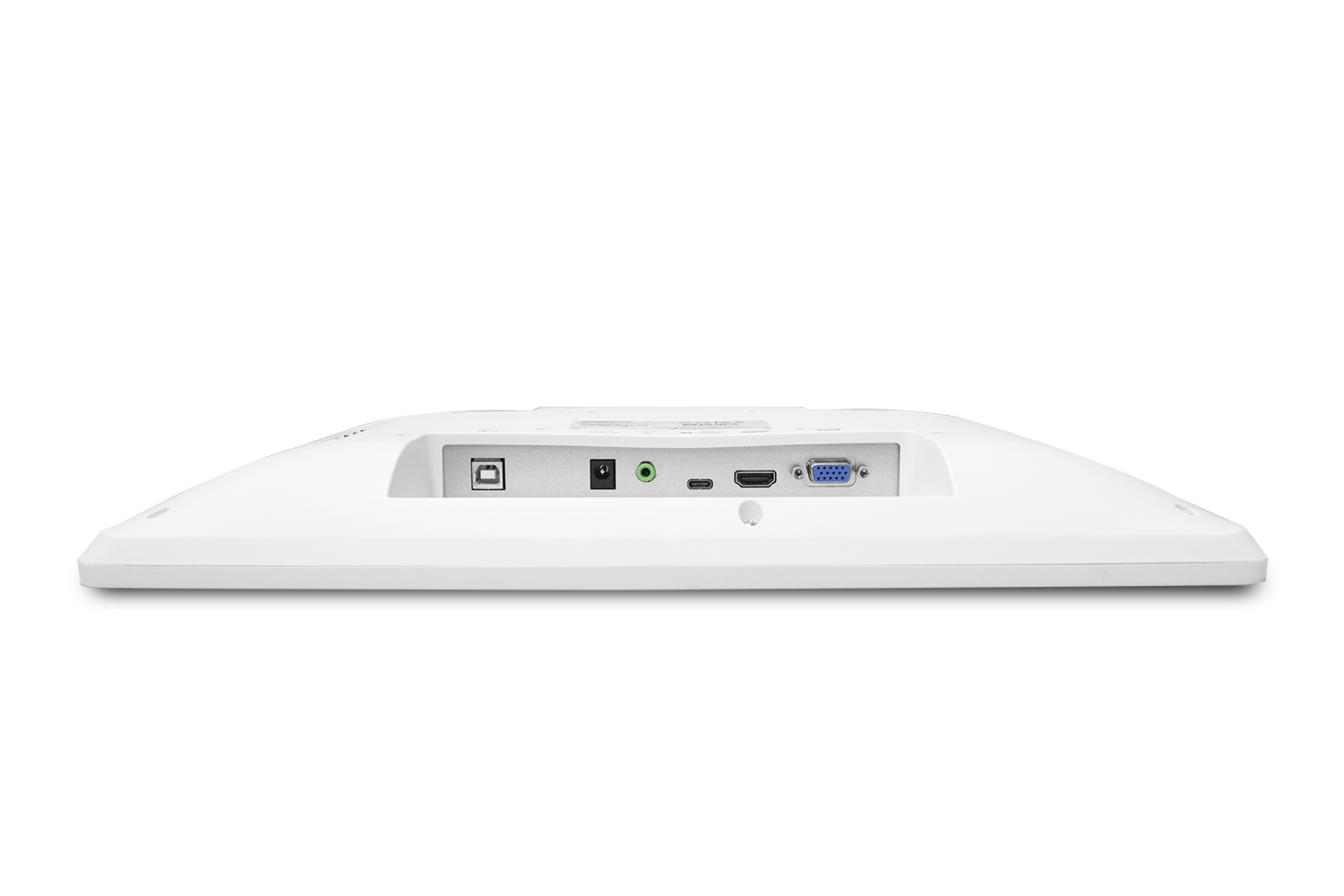

| I/O | |
| Input Signal | HDMI 1.4 x1, VGA x1 |
| USB Port | USB 2.0 Type B x1 for Touch Screen |
| Audio | Line-in x1 |
| Speaker | Built in 1W speaker x2 |
| Mechanical and Environmental | |
| Operating Temperature | 0°C~50°C (32°F~122°F) |
| Storage Temperature | -10°C ~ 60°C(14°F ~ 140°F) |
| Storage Humidity | 10%~90%@35°C, non-condensing |
| VESA | 75mm x 75mm, 100mm x 100mm |
| Dimension | 387.8 x 232.9 x 38.4 mm |
| Packing Size | 425.3 x 269.2 x 45.6 mm |
| Gross Weight | 5.20kg (11.46lb) |
| Net Weight | 1.50kg (3.31lb) |
| Certifications |
CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007/A1:2013/A2:2021 (V3.2) FCC: Part 18 Subpart C UL: ANSI/AAMI ES60601-1: 2005 & A1:2012 & A2:2021 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) |
