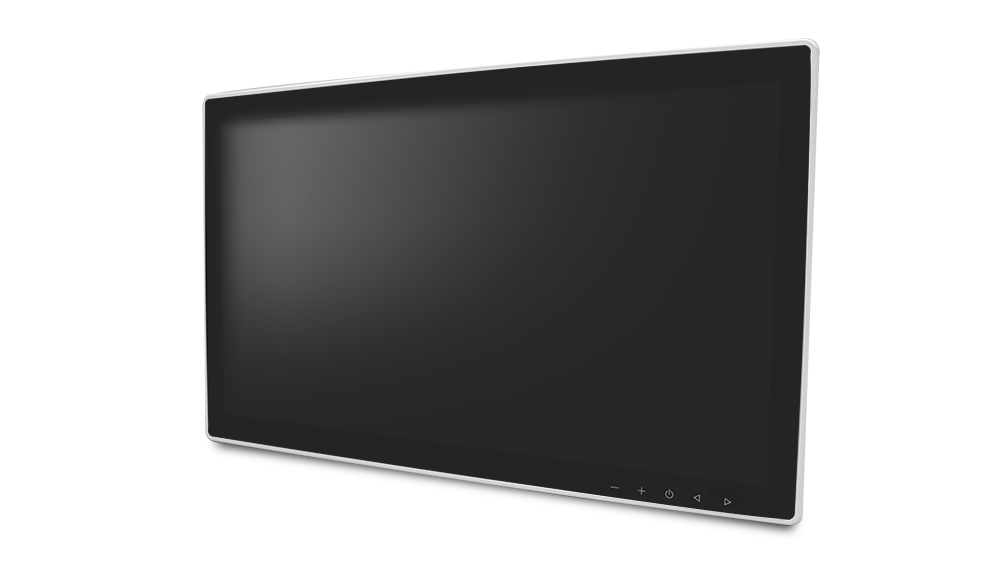

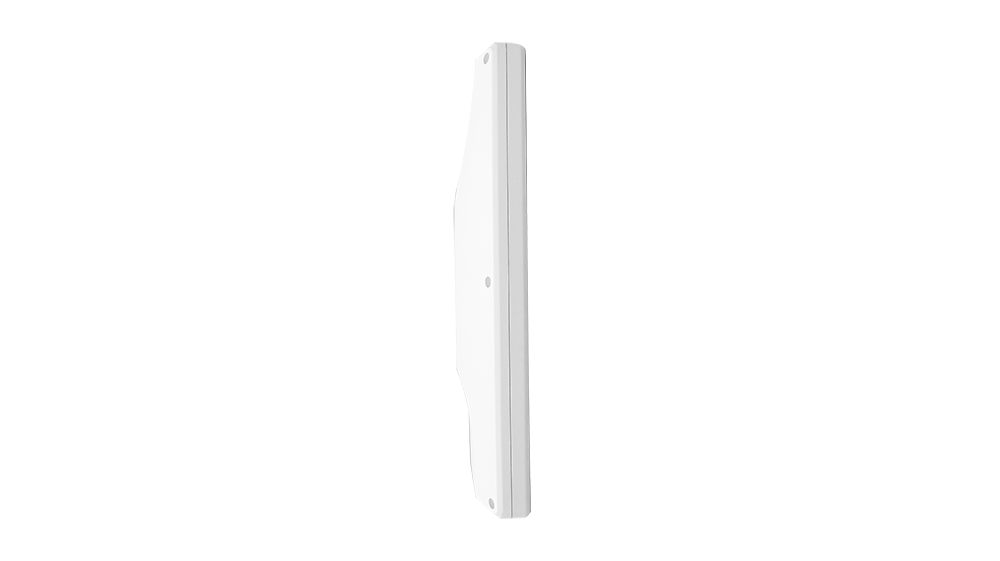

MEDDP-822
21.5” Slim Medical Display
Product Feature
- 21.5" LCD Panel with LED Backlight
- High Brigtness 500nits
- Compact and TerseDesign
- DVI x 1, HDMI x 1, VGAx1
- True Flat Screen with Capacitive Touch
- Speaker built-in x 2
- Physical OSD key buttom
Features
Specifications
| Display | |
| Size | 21.5" |
| Resolution | FHD 1920 x 1080 |
| Max. Colors | 16.7M |
| Brightness (Typ.) | 500 nits |
| Viewing Angle (CR=10)(Typ.) | 178˚(H)/178˚(V) |
| Contrast Ratio (Typ.) | 1000:1 |
| Touch Screen | Projected Capacitive Multi Touch Screen |
| Power Requirement | External power adapter, AC IN: 100~240V, DC 12V/3A |
| System | |
| OS Support | Windows® 10, Windows® 11 |
| I/O | |
| Input Signal | DVI-D x1, HDMI 1.4 x1, VGA x1 |
| USB Port | USB 2.0 Type B x1 for Touch Screen |
| Audio | Line-in x1 |
| Speaker | Built in 5W speaker x 2 |
| Mechanical and Environmental | |
| Operating Temperature | 0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Storage Humidity | 10%~90%@35°C, non-condensing |
| VESA | 75mm x 75mm, 100mm x 100mm |
| Dimension | 526 x 324 x 54mm |
| Packing Size | 645 x 378 x 210 mm |
| Gross Weight | 6.8kg (14.99lb) |
| Net Weight | 5.0kg (11.02lb) |
| Certifications |
CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007/A1:2013/A2:2021 (V3.2) FCC: Part 15 Subpart B / Part 18 Subpart C UL: ANSI/AAMI ES60601-1: 2005 & A1:2012 & A2:2021 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) |
